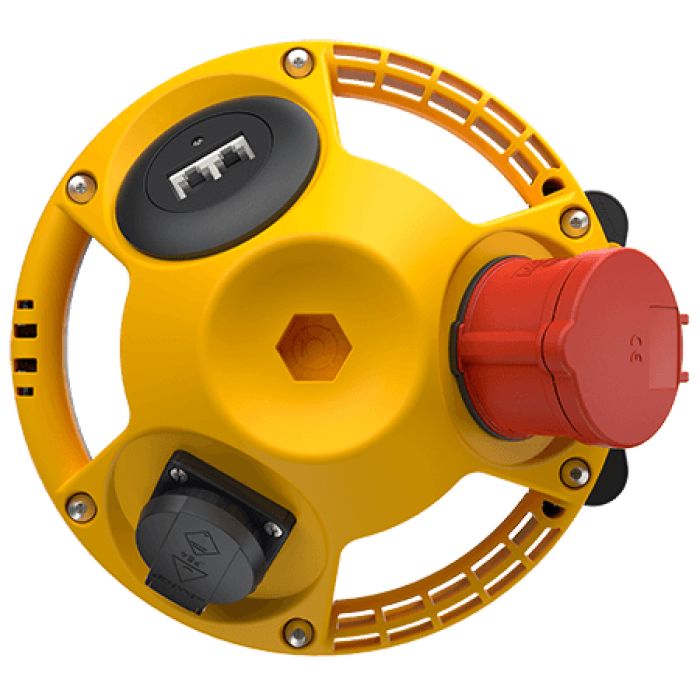

3KRAFT CEE16A5P400V NF 2RJ45 JAUNE IP20

Référence d'article: M94355FG

MENNEKES 3KRAFT
ready wired for installation
enclosure protection type IP20

enclosure: 1
enclosure made of AMAPLAST black (similar to RAL 9005)
with hinged cover (yellow),
integrated hanging eyelets and standing feet

fitted with/ fused with:
1 CEE-receptacle 16A 5p 400V
2 grounding-type receptacles 16A 2p+E 230V
french/belgian system, with shutter
1 RJ45 double UAE cat. 5e 8/8

cable entries for cut-out: at the top:
1 x M32, 1 x M25, 2 x M20
at the side: 1 x M25
1 x opening for cut-out at the top
for pneumatic connection or additional handle
(both available as accessories)

Poids:
1,500 kg / pièce
Degré de protection:
IP44
Couleur enveloppe:
Jaune
Mode d'installation:
Portable / Suspensible
CEE 16A, 5P, 400V:
1
Prise 16A, 2P+PE, 230V:
1
Connexion de données RJ45:
2
Avec protection:
Non
Matériau:
Amaplast
Appartient à:
3KRAFT
