COMBI INOX CEE16A5P400 4NF DIFF DISJ

Référence d'article: M83725NF

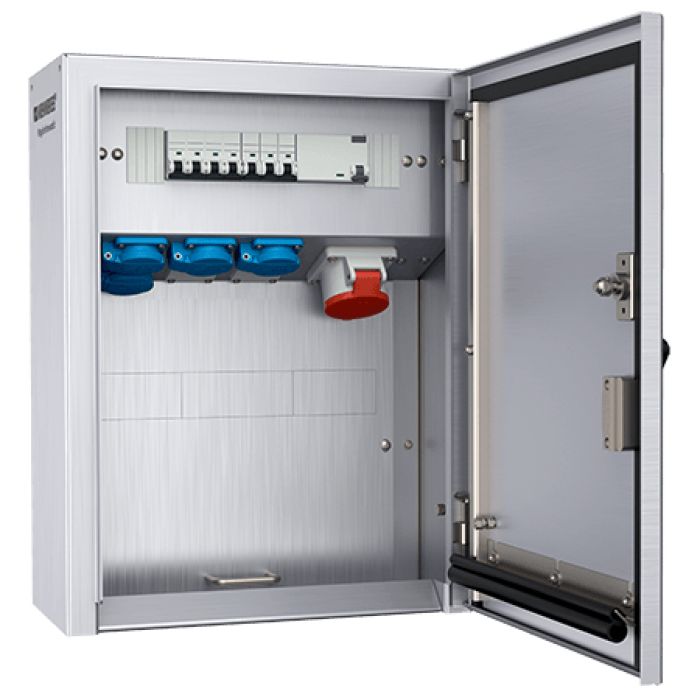

MENNEKES receptacle combination ready wired for installation enclosure protection type IP 44

enclosure:
1 enclosure made of flat finished stainless steel, material: 1.4301; K240
dimensions: 530 x 400 x 220 mm (h x w x d)

fitted with/fused with:
1 CEE receptacle 16A5p 400V
1 MCB 16A 3p+N C
4 grounding-type receptacles 16A 2p+E 230V blue french/belgian system, with shutter
4 MCB's 16A 1p+N C
1 RCD 40A 4p IFN=0,03A

cable entry/supply:
2 entry nipples M32 on bottom
2 brass screw plugs M16 on bottom
terminal for 2 cables up to 5 x 25mm²

front door with swing handle and cylinder lock - lockable even when plugs are
connected
standard door stop on right

Receptacle combination acc. to IEC 61439:
Fuse 40 A
RDF 0,8
InA 38 A

Poids:
23,700 kg / pièce
Degré de protection:
IP44
Couleur enveloppe:
Gris
Mode d'installation:
Apparent / Autonome
CEE 16A, 5P, 400V:
1
Prise 16A, 2P+PE, 230V:
4
Avec protection:
Oui
Matériau:
INOX
Appartient à:
Coffrets combine en INOX
