Distributeur 1CEPEX 2NF IP44
Référence d'article: M25708

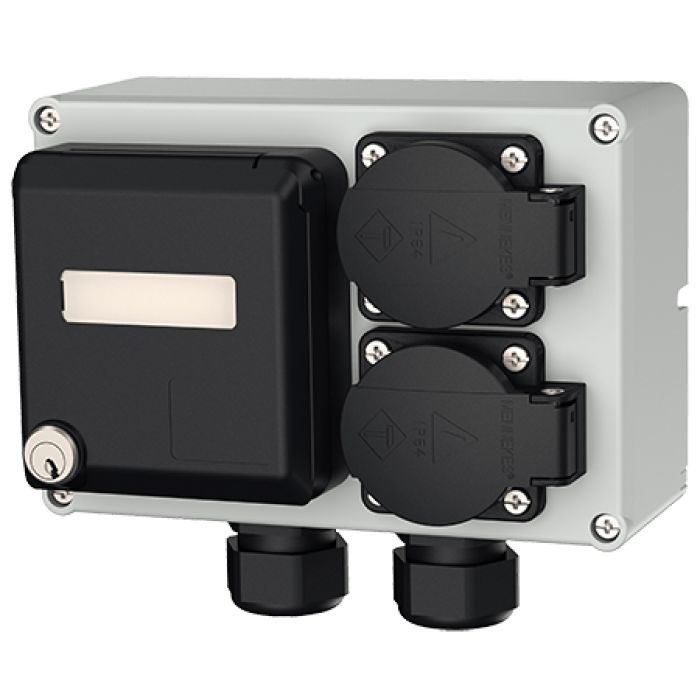

MENNEKES receptacle combination ready wired for installation enclosure protection type IP 44
enclosure:
1 enclosure made of polycarbonate 170 x 118 mm (h x w) electric grey RAL 7035
fitted with:
2 grounding-type receptacles 16A 2p+E 230V black french/belgian system
1 empty enclosure for data socket Cepex with 2 RJ 45 quick-connection-bushing category 6 , make AMP (type TWIST 6SL Jack with labelling field, lockable enclosure protection type IP 44 black RAL 9005
cable entry/ supply:
2 x M25 at the top (closed)
1 x cable gland M25 at the bottom
1 x cable gland M25 2x8 at the bottom (rubber grommet for 2 single cables up to a diameter of 8mm)
terminal for 1 cable up to 3 x 4 mm²
enclosure:
1 enclosure made of polycarbonate 170 x 118 mm (h x w) electric grey RAL 7035
fitted with:
2 grounding-type receptacles 16A 2p+E 230V black french/belgian system
1 empty enclosure for data socket Cepex with 2 RJ 45 quick-connection-bushing category 6 , make AMP (type TWIST 6SL Jack with labelling field, lockable enclosure protection type IP 44 black RAL 9005
cable entry/ supply:
2 x M25 at the top (closed)
1 x cable gland M25 at the bottom
1 x cable gland M25 2x8 at the bottom (rubber grommet for 2 single cables up to a diameter of 8mm)
terminal for 1 cable up to 3 x 4 mm²
- Degré de protection:
- IP44
- Couleur enveloppe:
- Gris clair
- Technologie de connexion:
- 1 terminal
- Type contact de protection:
- Broche de terre
- Protection enfants:
- Oui
- Mode d'installation:
- Apparent
- Prise 16A, 2P+PE, 230V:
- 2
- Connexion de données RJ45:
- 2
- Avec dispositifs de protection:
- Non
- Matériau:
- Amaplast
- Nombre de conducteurs:
- 1 câble 3x4mm²
- Appartient à:
- Distributeurs engerie / data
- CEE 32A, 4P, 400V:
- 0
