AMAXX CEE16A5P400V 3NF AUT IP67
Artikelreferentie: M934392

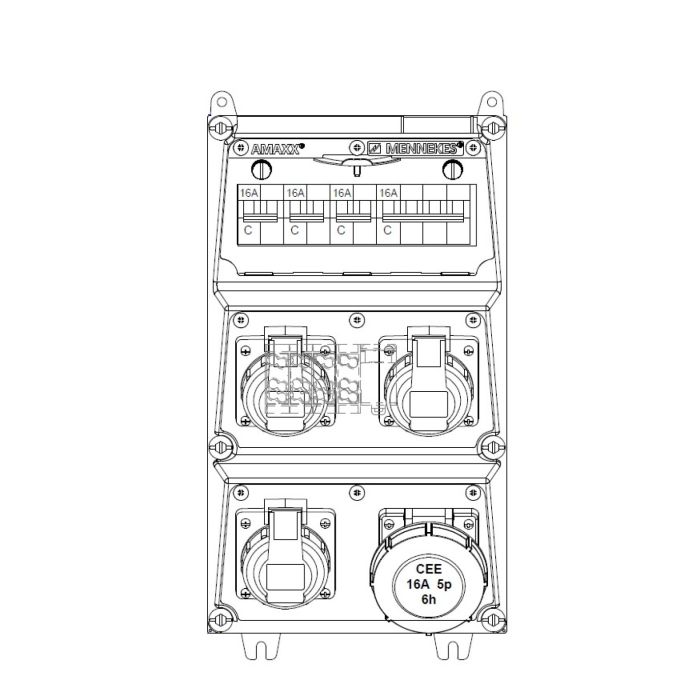

MENNEKES receptacle combination unit AMAXX ready wired for installation enclosure protection Type IP 67
enclosure:
1 AMAPLAST-enclosure 390 x 225 mm (h x w) lead-sealable, for internal or external fixing
black base
front cover electric grey RAL 7035
hinged cover with dual thread cover screws
fusing fitted on pull out DIN rails below transparent window
window open downwards and can be locked with padlock
receptacles with angled plugging direction
fitted with/fused with:
1 CEE receptacle 16A 5p 400V (IP 67)
1 MCB 16A 4p C
3 SCHUKO receptacles 16A 2p+E 230V (IP 68) french/belgian system, with shutter
3 MCBs 16A 2p C
cable entry/supply:
2 M 40 at the top and at the bottom (closed)
2 M 20 at the top and at the bottom (closed)
terminal for 2 cables up to 5 x 25 mm² (flexible max. 16 mm²)
enclosure:
1 AMAPLAST-enclosure 390 x 225 mm (h x w) lead-sealable, for internal or external fixing
black base
front cover electric grey RAL 7035
hinged cover with dual thread cover screws
fusing fitted on pull out DIN rails below transparent window
window open downwards and can be locked with padlock
receptacles with angled plugging direction
fitted with/fused with:
1 CEE receptacle 16A 5p 400V (IP 67)
1 MCB 16A 4p C
3 SCHUKO receptacles 16A 2p+E 230V (IP 68) french/belgian system, with shutter
3 MCBs 16A 2p C
cable entry/supply:
2 M 40 at the top and at the bottom (closed)
2 M 20 at the top and at the bottom (closed)
terminal for 2 cables up to 5 x 25 mm² (flexible max. 16 mm²)
- Gewicht:
- 5,300 kg / stuk
- Soort artikel:
- 3 segmenten
- Beschermingsgraad:
- IP67
- Kleur behuizing:
- Lichtgrijs
- Aansluittechniek:
- 1 terminal
- Type beschermcontact:
- Penaarde
- Kinderveiligheid:
- Ja
- Wijze van plaatsen:
- Opbouw
- CEE 16A, 5P, 400V:
- 1
- Contactdoos 16A, 2P+PE, 230V:
- 3
- Met bescherm toestellen:
- Ja
- Grondstof:
- Amaplast
- Aantal geleiders:
- 2 kabels 5x25mm²
- Behoort tot:
- AMAXX®
- CEE 32A, 4P, 400V:
- 0
