AMAXX OPHANGBAAR ZILVER IP44
Artikelreferentie: M970201SI

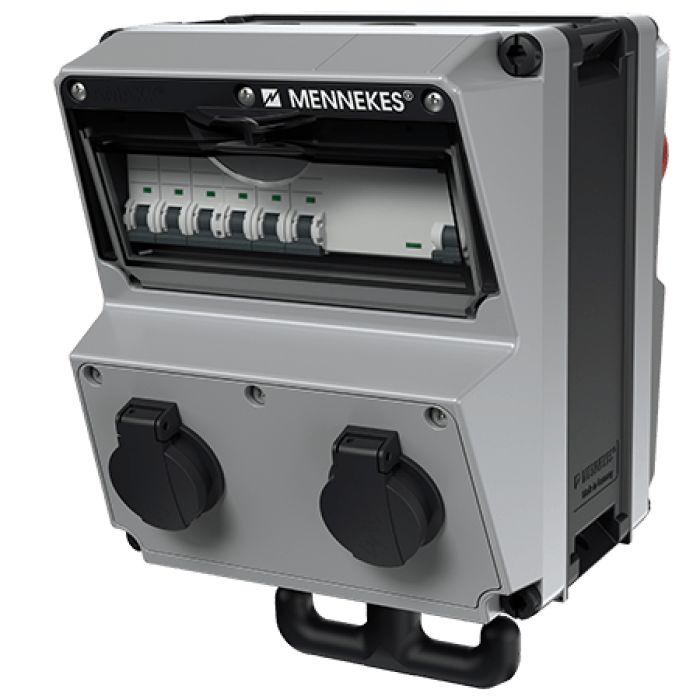

MENNEKES recaptacle combination unit AMAXX hanging ready wired for installation enclosure protection Type IP 44
enclosure:
1 AMAPLAST-enclosure 260 x 225 mm (h x w) lead-sealable
suspendable with two ring loops, handle at the bottom and attached chain set
black frame
front covers silver
hinged cover with dual thread cover screws
fusing fitted on pull out DIN rails below transparent window
window open downwards and can be locked with padlock
receptacles with angled plugging direction
fitted with/ fused with:
1 CEE receptacle 32A 5p 400V
1 MCB 32A 3p+N C
1 CEE receptacle 16A 5p 400V
1 MCB 16A 3p+N C
2 grounding-type receptacles 16A 2p+E 230V black french/belgian system, with shutter
1 MCB 16A 1p+N C
2 grounding-type receptacles 16A 2p+E 230V black french/belgian system, with shutter
1 MCB 16A 1p+N C
cable entry/ supply:
1x M 32 at the top (closed)
1x M 25 at the top (closed)
1x M 20 at the top (closed)
for 1 cable up to 5* 10 mm²
- Gewicht:
- 6,700 kg / stuk
- Beschermingsgraad:
- IP44
- Kleur behuizing:
- Zilver
- Wijze van plaatsen:
- Ophangbaar
- CEE 16A, 5P, 400V:
- 2
- Contactdoos 16A, 2P+PE, 230V:
- 4
- Met beveiliging:
- Ja
- Grondstof:
- Amaplast
- Behoort tot:
- AMAXX
