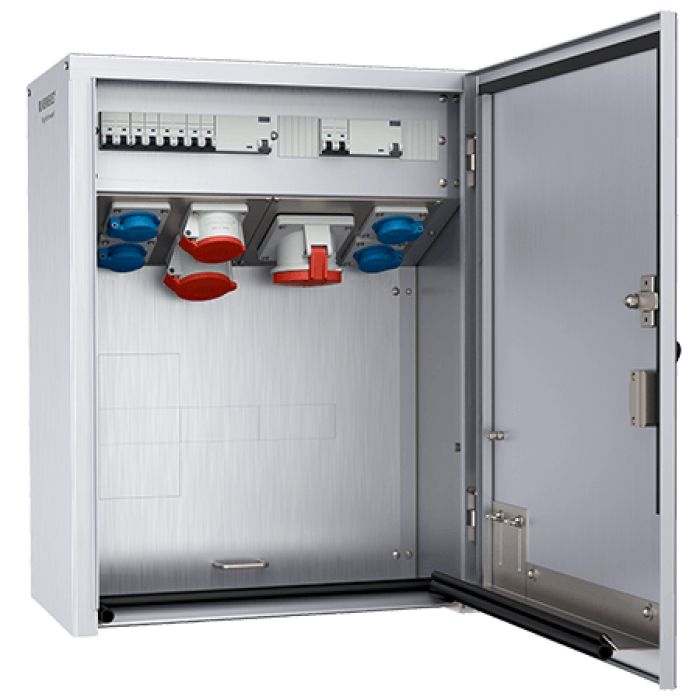

COMBI RVS CEE63A,32A,16A5P400V + 4NF

MENNEKES receptacle combination ready wired for installation enclosure protection type IP 44

enclosure:
1 enclosure made of flat finished stainless steel material: 1.4301; K240
Dimensions: 700 x 530 x 350 mm (b x w x d)
Front door with swing handle and cylinder lock - lockable even when plugs are connected.
Standard door stop on right
total weight: approx. 50 KG

fitted with/fused with:
1 CEE receptacle 63A 5p 400V
1 MCB 63A 3p+N C
1 RCD 63A 4p IFN=0,03A
1 CEE receptacle 32A 5p 400V
1 MCB 32A 3p+N C
1 CEE receptacle 16A 5p 400V
1 MCB 16A 3p+N C
4 grounding-type receptacles 16A 2p+E 230V french/belgian system, with shutter
4 MCB's 16A 1p+N C
prefuse: 1 Neozed DO2/3p (E18)
with fuse cartridges 63A
1 RCD 63A 4p IFN=0,03A

cable entry/supply:
2 cable entry sleeves at the bottom (for cable diameter 13-49 mm)
2 brass screw-plugs M16 on the bottom
1 brass screw-plug M20 on the bottom

terminal for 2 cables up to 5 x 50mm²
(safe to touch acc. to BGVA2)

Receptacle combination acc. to IEC 61439:
Fuse 125 A
RDF 0,5
InA 72 A
